FTC-LAV-5/G
Images are for representation only. Actual product may differ in size, color or options.

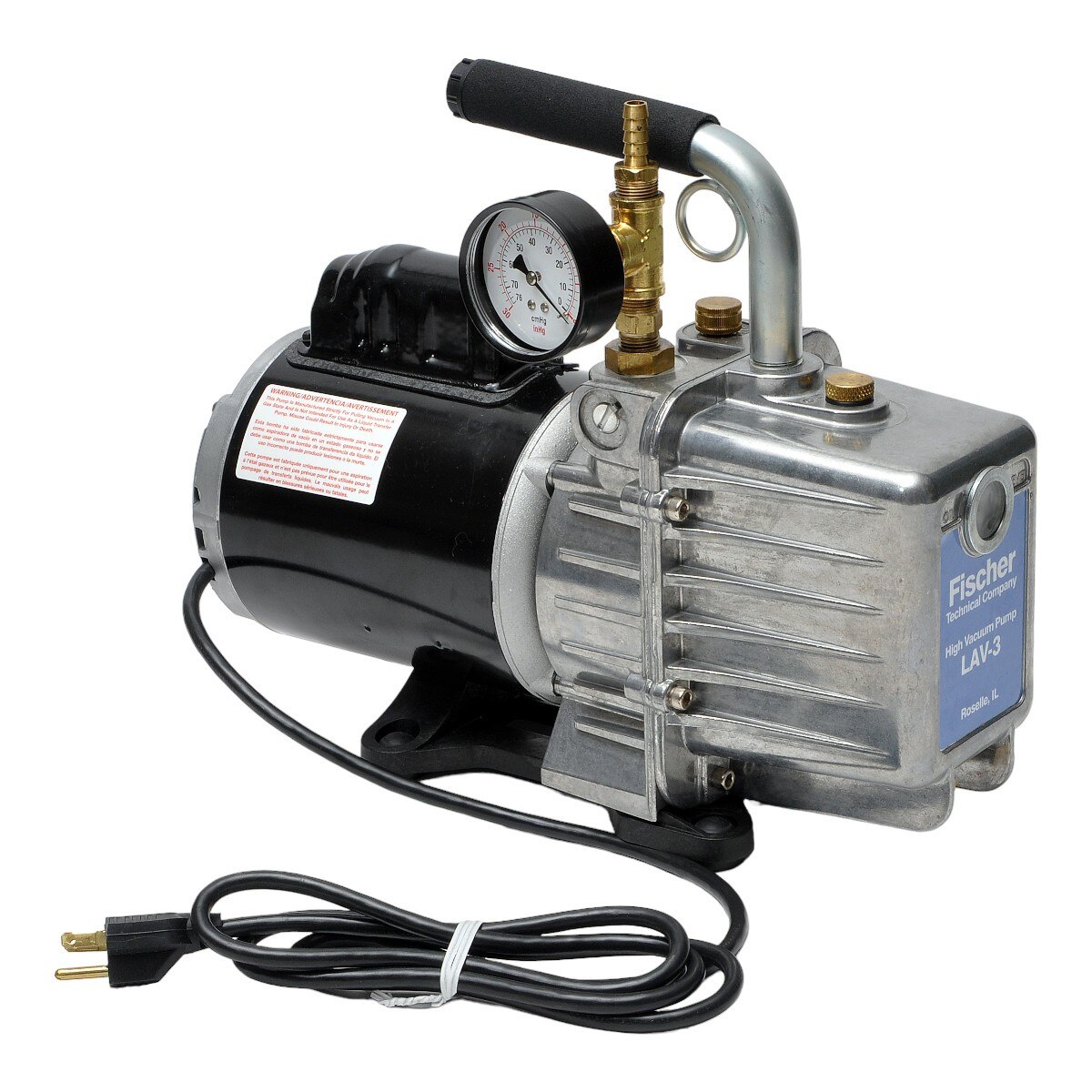

High Vacuum Pump, 5CFM, 110V, 60Hz with 0-30" Bourdon Tube Type Gauge
These 5 CFM (142 l/m) rotary style, 2 stage direct drive pumps are ideal for use in virtually all high vacuum applications. Pumps are tested to 15 microns Hg but are suitable for all applications requiring a vacuum under 500 microns Hg. The pumps use High Vacuum Pump Oil (one quart included) and are designed to run on a closed and dry system. Regular oil changes and proper maintenance will ensure these pumps will last for years in your laboratory.
This model includes an installed 0-30” Bourdon Tube Type Gauge.
These 5 CFM (142 l/m) rotary style, 2 stage direct drive pumps are ideal for use in virtually all high vacuum applications. Pumps are tested to 15 microns Hg but are suitable for all applications requiring a vacuum under 500 microns Hg. The pumps use High Vacuum Pump Oil (one quart included) and are designed to run on a closed and dry system. Regular oil changes and proper maintenance will ensure these pumps will last for years in your laboratory.
This model includes an installed 0-30” Bourdon Tube Type Gauge.

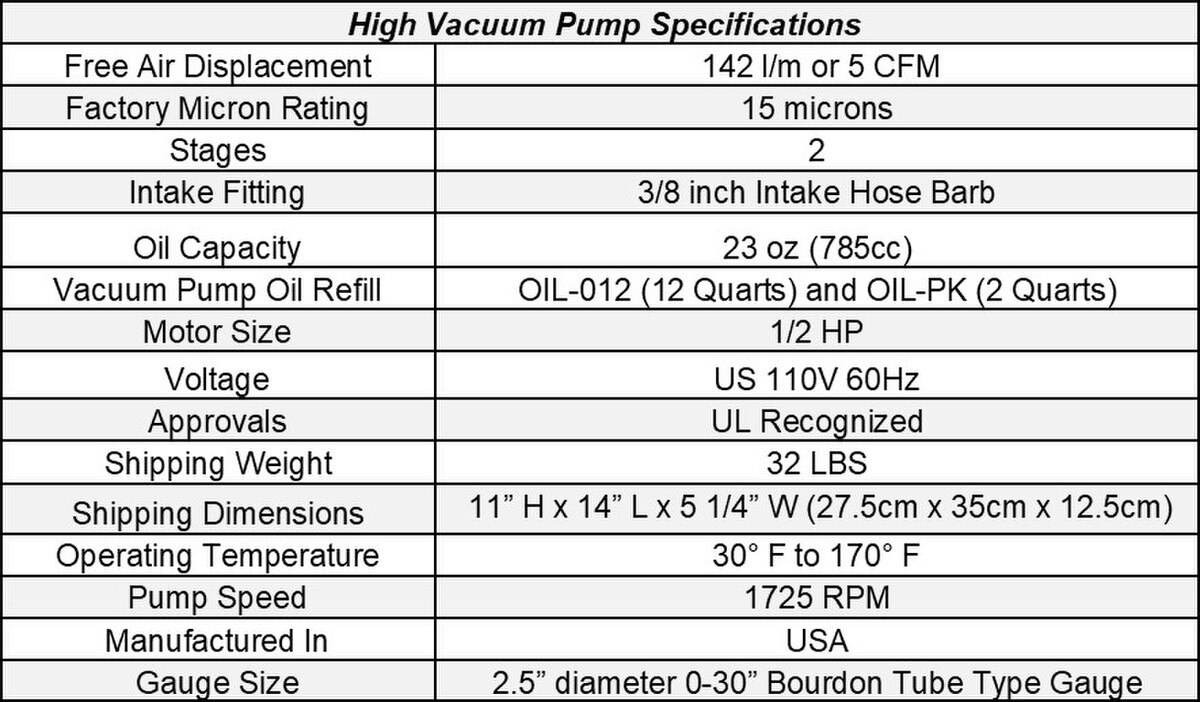

| Product Type: | High Vacuum Pumps |
| Brand: | Fischer Technical |
| Capacity: | 5 CFM |
| Motor: | 1/2 HP, 1725 RPM capacitor start motor with thermal overload protection |
| Power Supply: | 115 VAC 60 Hz, US Plug |
| Hose Barb Size: | 3/8 inch |
| Overall Dimensions: | 11"H x 14"L x 5-1/4"W (27.5cm X 35cm X 12.cm) |
| Includes: | 1 Quart Pump Oil |
