GVI-PRG2050K
Images are for representation only. Actual product may differ in size, color or options.

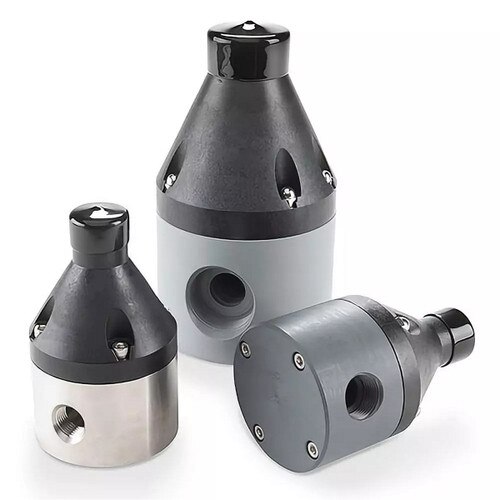

Griffco G-Series Pressure Relief Valve (10 to 150 PSI, PVDF, 1/2" NPT, 2-Port)
Griffco G-Series pressure relief valves are designed to protect chemical feed systems from over pressure damage caused by defective equipment or a blockage in the chemical feed line. Robust construction ensures reliability in the rigorous service of municipal and industrial applications.
| Product Type: | Pressure Relief Valve |
| Brand: | Griffco Valve |
| Range: | 10 to 150 PSI |
| Temperature Range: | 300°F (149°C) Maximum |
| Housing: | PVDF Body; Noryl Top |
| Max Pressure (PSI): | 150 |
| Diaphragm: | PTFE/EPDM |
| Connections: | 1/2" NPT |
