KOF-2-40C-4-12-2
Images are for representation only. Actual product may differ in size, color or options.

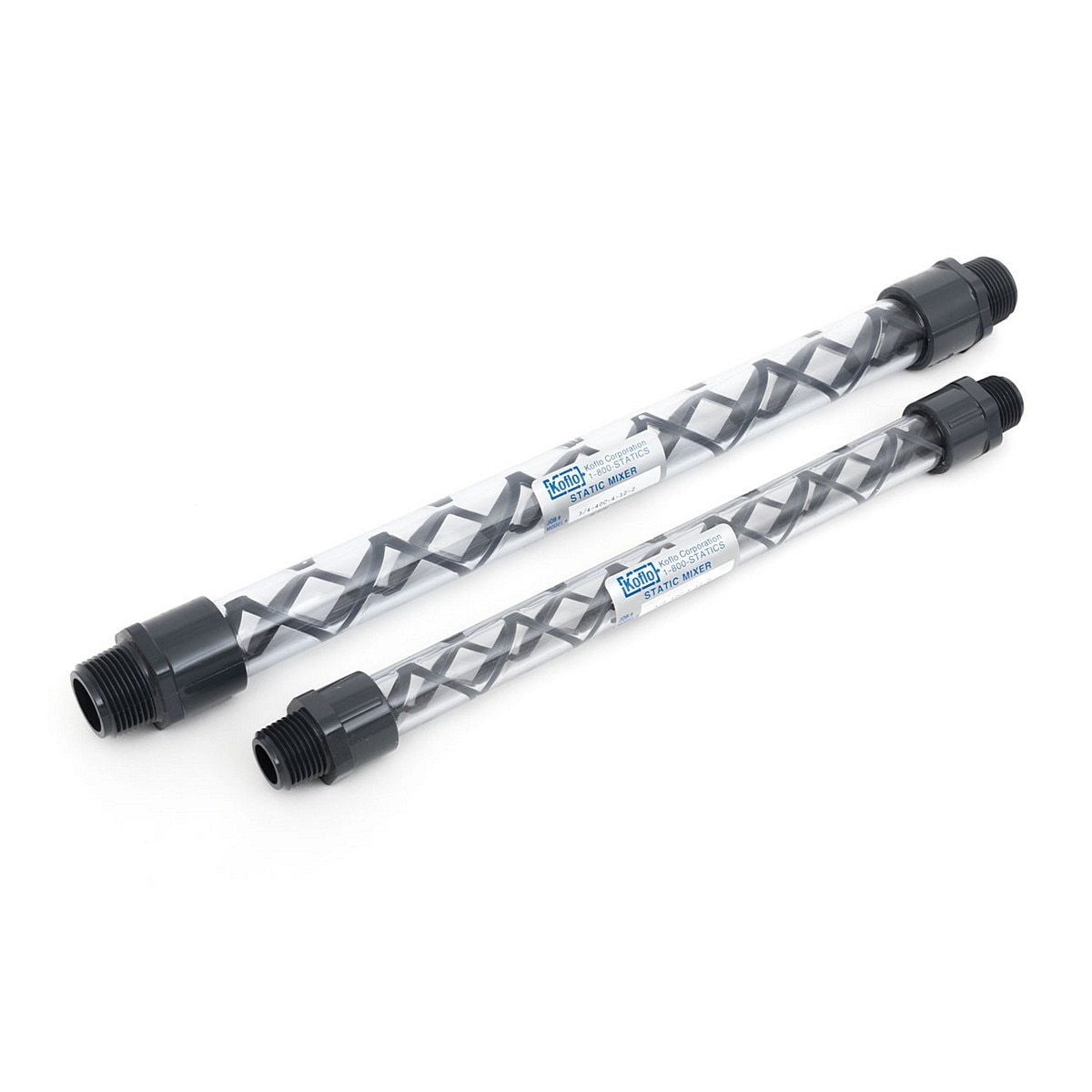

2" MNPT Static Mixer 12 elements, 35" long, Clear PVC SCH 40
Koflo PVC static mixers are edge sealed to the inside of the housing for the twofold benefit of improved mixing efficiency and increased structural rigidity. All stock clear motionless mixers come equipped with male NPT threaded ends and are in stock for immediate delivery.
Typical Applications
Features
Housing: Schedule 40 Clear PVC.
Elements: Koflo Blade™ Style PVC.
End Connections: Male NPT (Threaded Ends).
Koflo PVC static mixers are edge sealed to the inside of the housing for the twofold benefit of improved mixing efficiency and increased structural rigidity. All stock clear motionless mixers come equipped with male NPT threaded ends and are in stock for immediate delivery.
Typical Applications
- Admixing of water treatment chemicals.
- pH control.
- Chlorination and ozonation.
- Process control sampling.
Features
Housing: Schedule 40 Clear PVC.
Elements: Koflo Blade™ Style PVC.
End Connections: Male NPT (Threaded Ends).
- Clear PVC pipe allows visual inspection of mixing process.
- PVC construction provides a durable and cost-effective mixing option.
- Third party certified to NSF / ANSI 61.
| Model Number | Pipe Dia. MNPT Ends | Number of Elements | Length | Weight | Max. Working Pressure (PSI @ 75°F) | Typical Flow (GPM) | Pressure Loss (PSI) |
|---|---|---|---|---|---|---|---|
| 2-40C-4-12-2 | 2" | 12 | 35" | 43 oz | 140 | 9 - 60 | .50 - 18.5 |
| Product Type: | Static Mixer |
| Brand: | Koflo |
| Material: | PVC |
| Color: | Clear |
| Certifications: | NSF 61 Certified |
