LTG-UTRED-16 Kit
Images are for representation only. Actual product may differ in size, color or options.
LogTag UTRED-16 Vaccine Kit -40°C to 99°C (-40°F to 210°F) with Factory Calibration Certificate
The LogTag ® UTRED-16 is an affordable and reliable USB temperature recorder. The device measures and stores real-time temperature readings over a measurement range of -40°C to +99°C (-40°F to 210°F).
The LogTag ® UTRED-16 comes with advanced temperature recorder features of 16,000 log memory and can be used with all external probes from the ST100 range, and the extension cable. It complies with relevant international standards for temperature monitoring devices, such as FCC, CE, IC, and RCM.
Features:
NOTE:
This unit comes with a Non-NIST traceable Calibration Certificate (CDC approved). You can upgrade to a NIST certificate by adding either of the following to your cart. Each unit ordered will need a certificate if upgrading.
The LogTag ® UTRED-16 is an affordable and reliable USB temperature recorder. The device measures and stores real-time temperature readings over a measurement range of -40°C to +99°C (-40°F to 210°F).
The LogTag ® UTRED-16 comes with advanced temperature recorder features of 16,000 log memory and can be used with all external probes from the ST100 range, and the extension cable. It complies with relevant international standards for temperature monitoring devices, such as FCC, CE, IC, and RCM.
Features:
- Records temperature from -40°C to +99°C
- Up to 16,000 recordings - enough for 168 days at 15-minute logging (can be reset to log more readings)
- Read current temperature and latest Min-Max temperature at a glance.
- Display showing temperature and alarm status of up to six alarms.
- Automatic generation of a PDF report as a permanent record of the data.
- Can be connected to any computer with a USB port. No interface cradle is required.
- A fixed battery of 1-year storage, 2 years of normal use.
- Creates a comprehensive data file compatible with LogTag Analyzer operating software.
- Auto-pause function suspends alarm and statistic processing when the external sensor is unplugged.
NOTE:
This unit comes with a Non-NIST traceable Calibration Certificate (CDC approved). You can upgrade to a NIST certificate by adding either of the following to your cart. Each unit ordered will need a certificate if upgrading.
- T-NIST2P
- LT-NIST3P
| Product Type: | Data Logger |
| Brand: | LogTag |
| Class: | Multi-Use |
| Material: | ABS |
| Temperature Range: | -40°C to 99°C (-40°F to 210°F) |
| Data Logging Duration: | 16,129 temperature readings (can be reset after max is reached) |
| Data Logging Interval: | Configurable; 30 seconds to 18 hours |
| Connections: | USB 2.0, A-type plug |
| Power Supply: | CR2450 Coin Battery, Fixed, Non - Replaceable |
| IP Rating: | IP61 |
| Alarm: | Multiple Alarm |
| Overall Dimensions: | 3.67 x 2.14 x 0.33 inches (93 x 54.5 x 8.6 mm) |

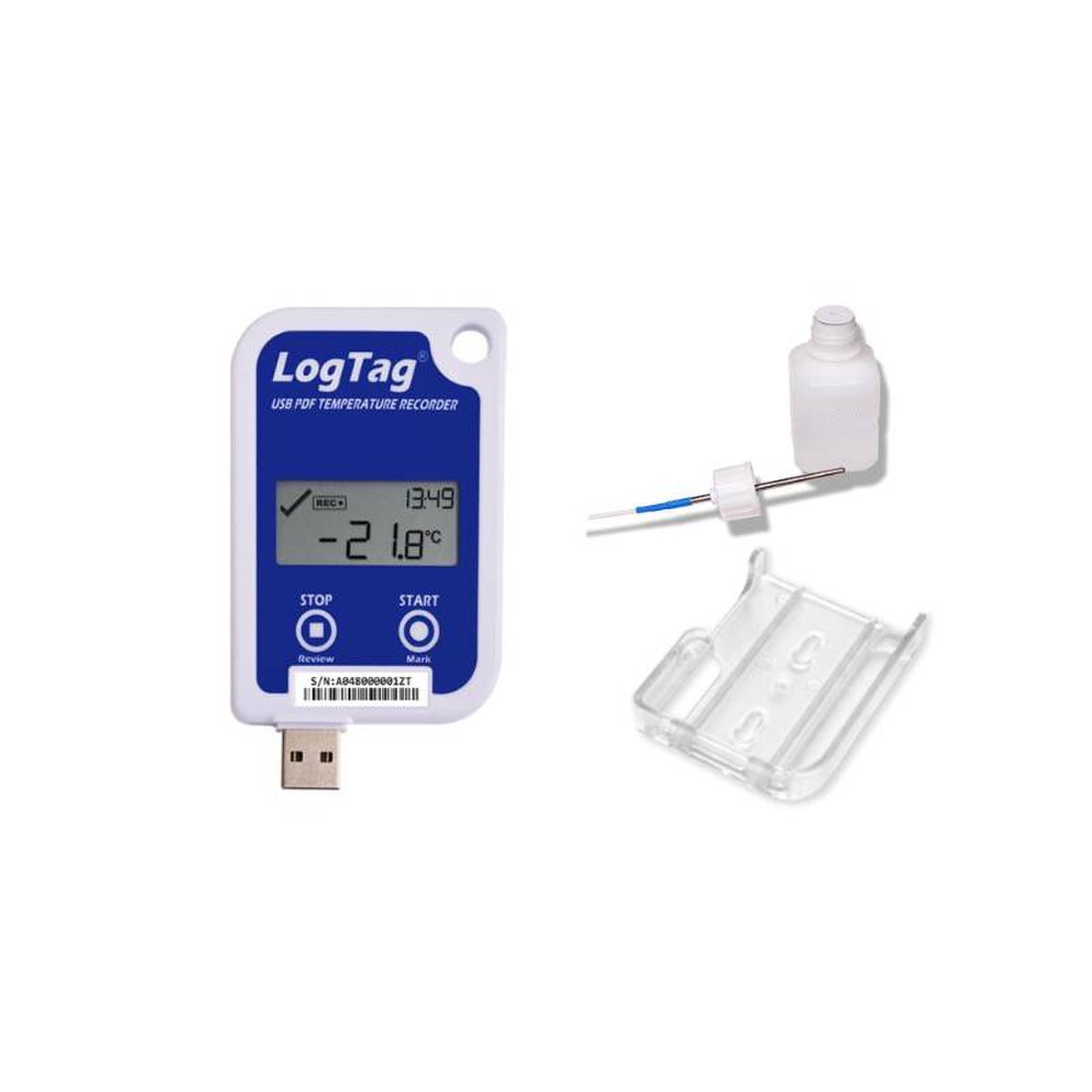

| Includes: | UTRED-16, ST100K-15 External Probe, Glycol Bottle (glass bead filled), Wall Mount Bracket, Calibration Certificate |
| Notes: | PDF Output |
| Working Environment: | -30°C to 60°C (-22°F to 140°F) |
