PUL-MTR504-G
Images are for representation only. Actual product may differ in size, color or options.

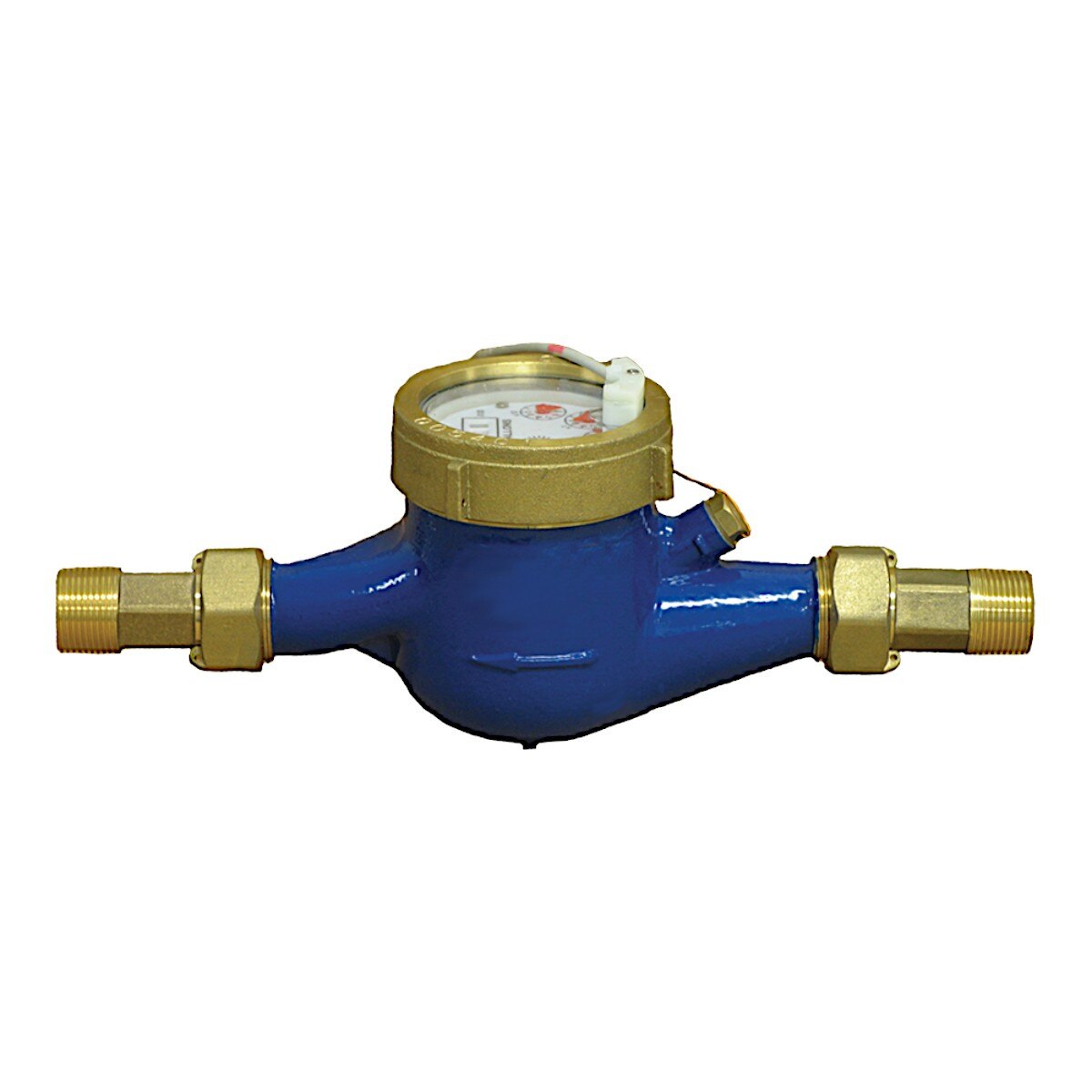

NSF 61 Certified Lead Free Brass Contacting Water Meter for Cold Water, 2 to 160 GPM, 1 GPC, 2 inch NPT (each)
Pulsafeeder’s multi-jet water meters provide value by offering efficient, accurate operation for potable and non-potable water applications. The water meters are available in both totalizing & contacting head type providing a dry contact output proportional to flow and can interface directly with both Pulsafeeder pumps and controllers.
A totalizing register dial records flow over a wide range with low head loss. Contacting Water Meters are for use in such places as physical plant maintenance, process control, batching, accountability metering, etc. to meter the volume of cold water flowing through it for batch or continuous processes. The Contacting Water Meters are specifically designed to control the metering of chemicals in direct proportion to the influent flow rate. The item components are made for only COLD WATER.
Multi-Jet Meters from 3/4 inch to 2 inch, are designed for use in conjunction with a pulse timer to proportionally control pumps, valves etc. The Multi-Jet chamber of the water meter assures accuracy over a wide range of flows with low head loss. To prevent wear and maintain accuracy the load is equally distributed on the impeller.
The body of the water meter is constructed from lead free brass and factory tested to meet the AWWA C-708 Multi-Jet Meter accuracy specifications. The Multi-Jet Meter has a contact rating of 24VDC or VAC at 20 mA. The meters are NSF/ANSI 61 Certified.
Pulsafeeder’s multi-jet water meters provide value by offering efficient, accurate operation for potable and non-potable water applications. The water meters are available in both totalizing & contacting head type providing a dry contact output proportional to flow and can interface directly with both Pulsafeeder pumps and controllers.
A totalizing register dial records flow over a wide range with low head loss. Contacting Water Meters are for use in such places as physical plant maintenance, process control, batching, accountability metering, etc. to meter the volume of cold water flowing through it for batch or continuous processes. The Contacting Water Meters are specifically designed to control the metering of chemicals in direct proportion to the influent flow rate. The item components are made for only COLD WATER.
Multi-Jet Meters from 3/4 inch to 2 inch, are designed for use in conjunction with a pulse timer to proportionally control pumps, valves etc. The Multi-Jet chamber of the water meter assures accuracy over a wide range of flows with low head loss. To prevent wear and maintain accuracy the load is equally distributed on the impeller.
The body of the water meter is constructed from lead free brass and factory tested to meet the AWWA C-708 Multi-Jet Meter accuracy specifications. The Multi-Jet Meter has a contact rating of 24VDC or VAC at 20 mA. The meters are NSF/ANSI 61 Certified.
| Product Type: | Contacting Water Meter |
| Brand: | Pulsafeeder |
| Class: | Multi-Jet |
| Grade: | Cold Water |
| Material: | Lead Free Brass |
| Range: | 2 – 160 GPM |
| Temperature Range: | 105°F (40°C) max |
| Max Flow (GPM): | 160 |
| Max Pressure (PSI): | 150 |
| Flow Control: | 1 GPC (Gallons per Contact) |
| Connections: | 2 inch NPT |
| Certifications: | NSF 61 Certified |
