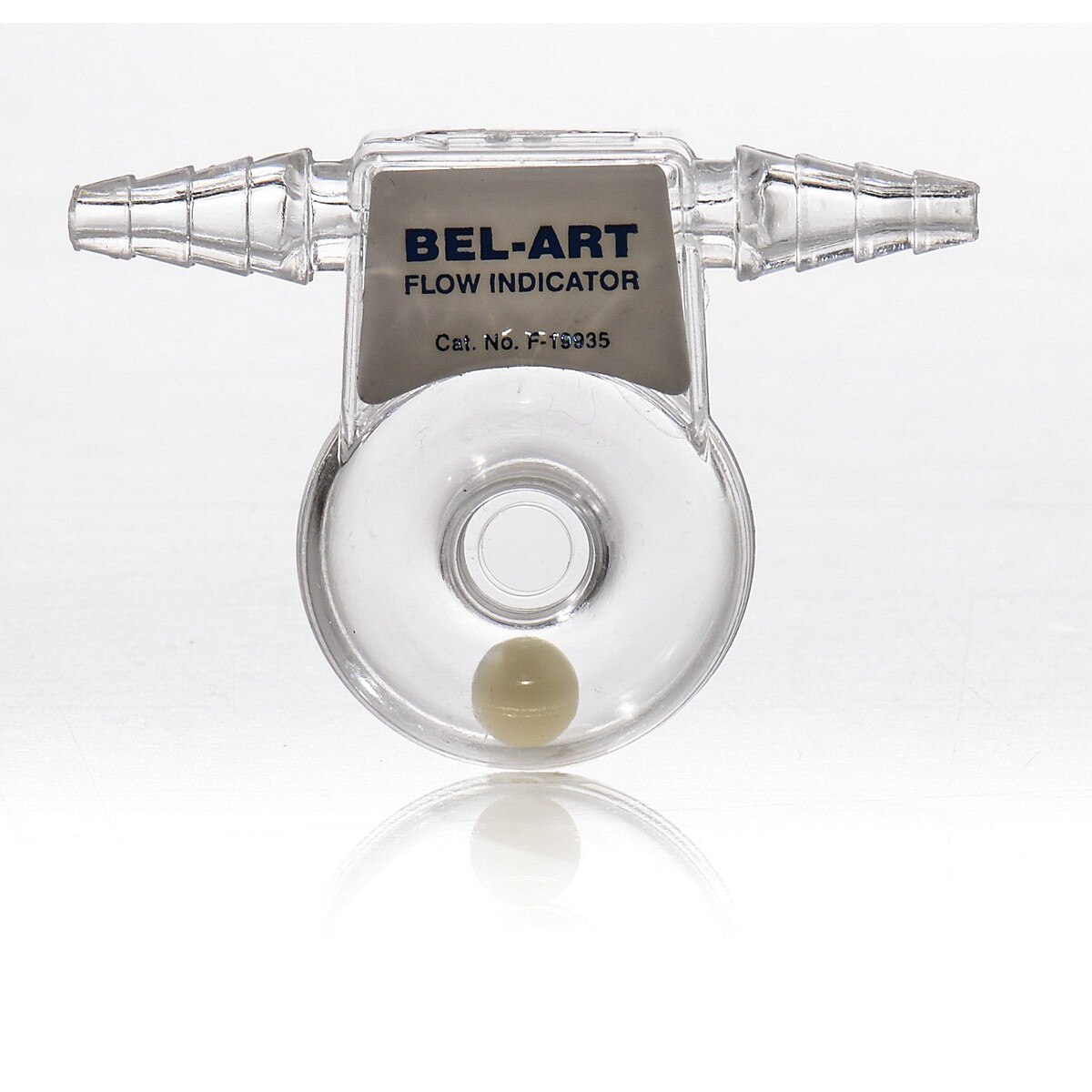

Flow Indicator for 1/4 to 3/8 in. I.D. Tubing, Clear Polycarbonate (each)
Provides Immediate Visual Indication of Water/Liquid Flow.
A highly visible, nylon indicator ball housed in clear polycarbonate rotates in a circular channel during flow for simple flow monitoring.
Provides Immediate Visual Indication of Water/Liquid Flow.
A highly visible, nylon indicator ball housed in clear polycarbonate rotates in a circular channel during flow for simple flow monitoring.
- Continuity and relative flow rate indicated by speed of ball’s rotation.
- Arrow shows the direction of flow.
- A minimum water flow rate of 100/ml per minute in a horizontal position and 140ml per minute in a vertical position is required to mobilize the ball.
- Upper flow limit is in excess of 1 liter/minute.
- Maximum working pressure is 10 p.s.i.g. (69 kN/m2).
- Dimensions: 30 x 57mm (1⅕ x 2¼") with two 23mm (0.9") long tube extensions.
- Accepts 6.4mm (¼") to 9.5mm (⅜") I.D. tubing.
- Overall size: 76 x 57mm (3 x 2¼").
| Product Type: | Flow Indicator |
| Brand: | Bel-Art |
| Material: | Polycarbonate |
| Color: | Clear |
| Overall Dimensions: | 3 X 2-1/4 inch |
