VLB-VE-146YT
Images are for representation only. Actual product may differ in size, color or options.

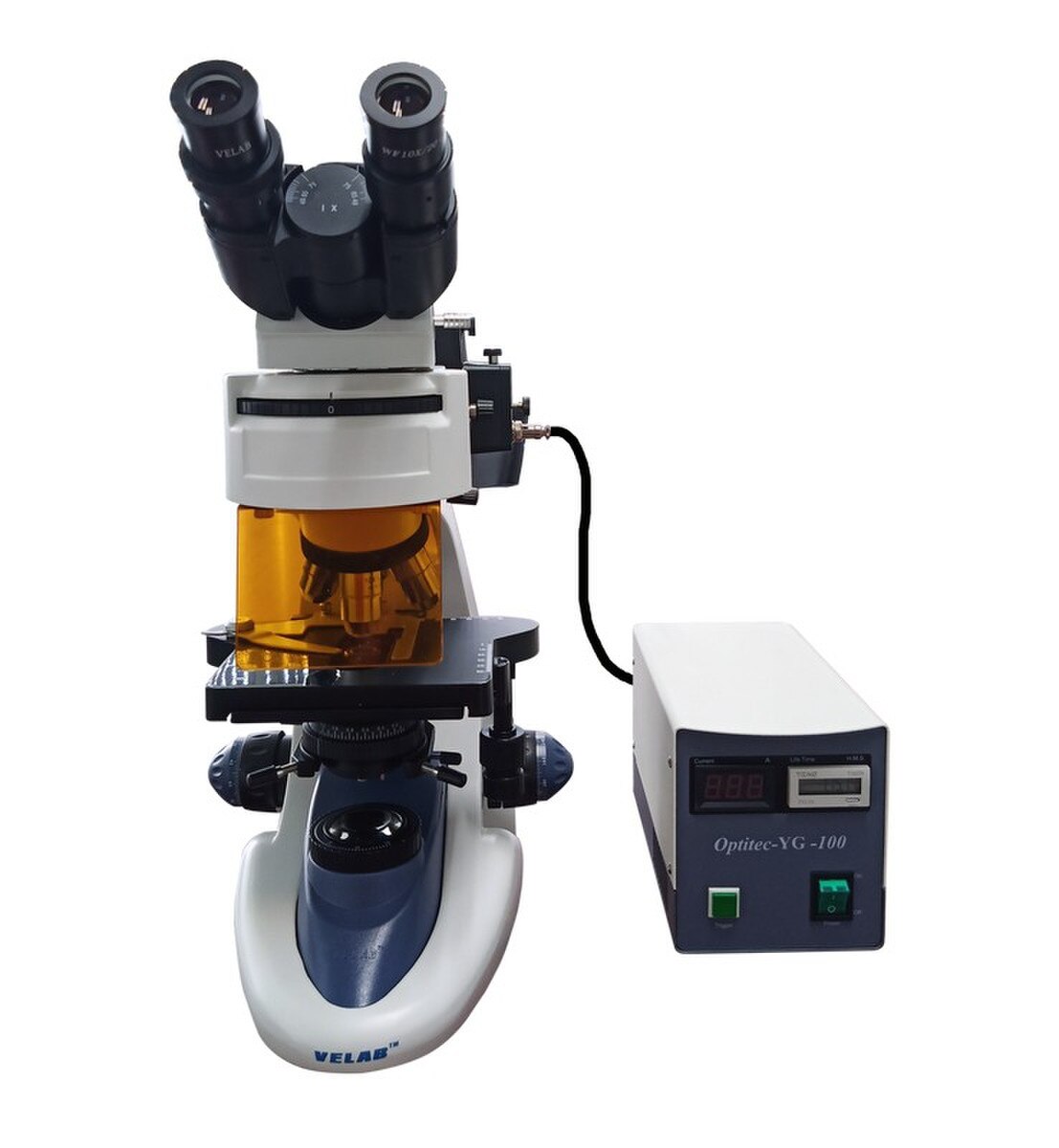

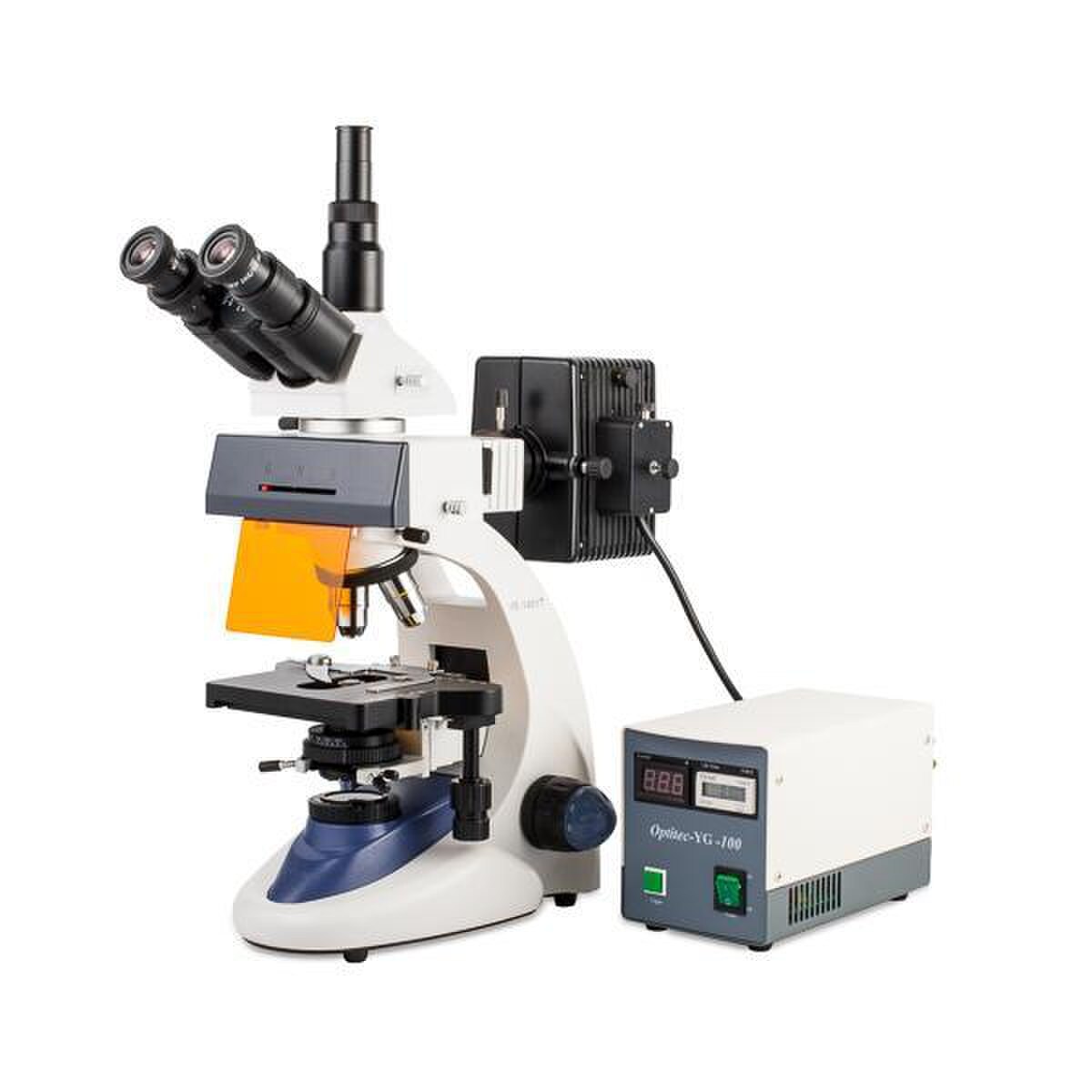

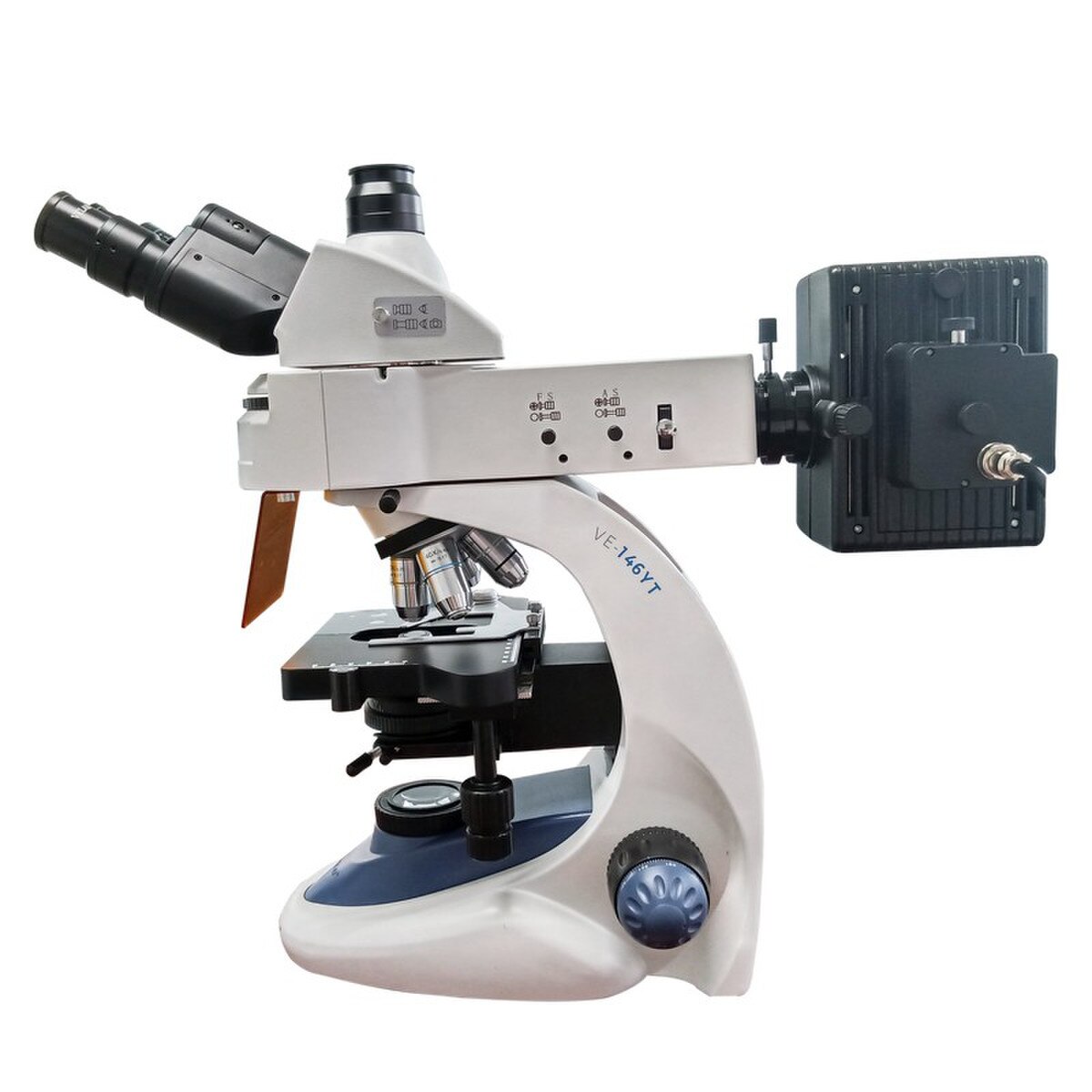

Trinocular Epifluorescence Microscope (each)
Trinocular fluorescence microscope with yellow-green observation effects on B-band with applicable ranges for FITC, acridine orange and auramine O. G-band red color with applicable ranges for TRITC, rhodamine B200 and propidium iodide. The VE-146YT is used in the diagnosis of diseases, biochemistry, neurology, molecular biology, genetics, microbiology and research.
SPECIFICATIONS
EYEPIECES: WF 10x/22mm with rubber eyecups and diopter adjustment on one eyepiece.
HEAD: Trinocular Siedentopf type, 45° inclined and 360° rotation, with interpupillary distance adjustment between 48 - 75mm / 1.88" - 2.95". Adapted to fluorescence illumination and filter box with B, G and brightfield position. Includes polarized 360 ° rotation.
NOSEPIECE: Quadruple with anti-slip grip and click-stops.
OBJECTIVES: 4X, 10X, 40X (retractable) and 100X (retractable) oil immersion with infinity corrected achromatic optics, metallic finish and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Double plate with coaxial X-Y movement, 150 x 132 mm / 5.90" x 5.19", vernier, millimeter scale, height adjustment with clamp and stop.
CONDENSER: Abbe, A.N. 1.25 with height adjustment screw.
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: Kohler halogen 12V/30W with field diaphragm lamp and epi- fluorescence using 100W mercury vapor with variable intensity control.
POWER SUPPLY: 110-240V, 50/60 Hz AC adapter.
DIMENSIONS: 10.43" x 22.63" x 19.09"
ACCESSORIES INCLUDED
2 Power cords.
Blue, green and yellow filters.
Dust cover.
Immersion oil.
Microscope power supply.
WARRANTY
10-years limited warranty
Trinocular fluorescence microscope with yellow-green observation effects on B-band with applicable ranges for FITC, acridine orange and auramine O. G-band red color with applicable ranges for TRITC, rhodamine B200 and propidium iodide. The VE-146YT is used in the diagnosis of diseases, biochemistry, neurology, molecular biology, genetics, microbiology and research.
SPECIFICATIONS
EYEPIECES: WF 10x/22mm with rubber eyecups and diopter adjustment on one eyepiece.
HEAD: Trinocular Siedentopf type, 45° inclined and 360° rotation, with interpupillary distance adjustment between 48 - 75mm / 1.88" - 2.95". Adapted to fluorescence illumination and filter box with B, G and brightfield position. Includes polarized 360 ° rotation.
NOSEPIECE: Quadruple with anti-slip grip and click-stops.
OBJECTIVES: 4X, 10X, 40X (retractable) and 100X (retractable) oil immersion with infinity corrected achromatic optics, metallic finish and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Double plate with coaxial X-Y movement, 150 x 132 mm / 5.90" x 5.19", vernier, millimeter scale, height adjustment with clamp and stop.
CONDENSER: Abbe, A.N. 1.25 with height adjustment screw.
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: Kohler halogen 12V/30W with field diaphragm lamp and epi- fluorescence using 100W mercury vapor with variable intensity control.
POWER SUPPLY: 110-240V, 50/60 Hz AC adapter.
DIMENSIONS: 10.43" x 22.63" x 19.09"
ACCESSORIES INCLUDED
2 Power cords.
Blue, green and yellow filters.
Dust cover.
Immersion oil.
Microscope power supply.
WARRANTY
10-years limited warranty
| Product Type: | Microscope |
| Brand: | VELAB |
| Head: | Trinocular |
| Overall Dimensions: | 16 x 18 x 22 in |
