VLB-VE-300PAD
Images are for representation only. Actual product may differ in size, color or options.

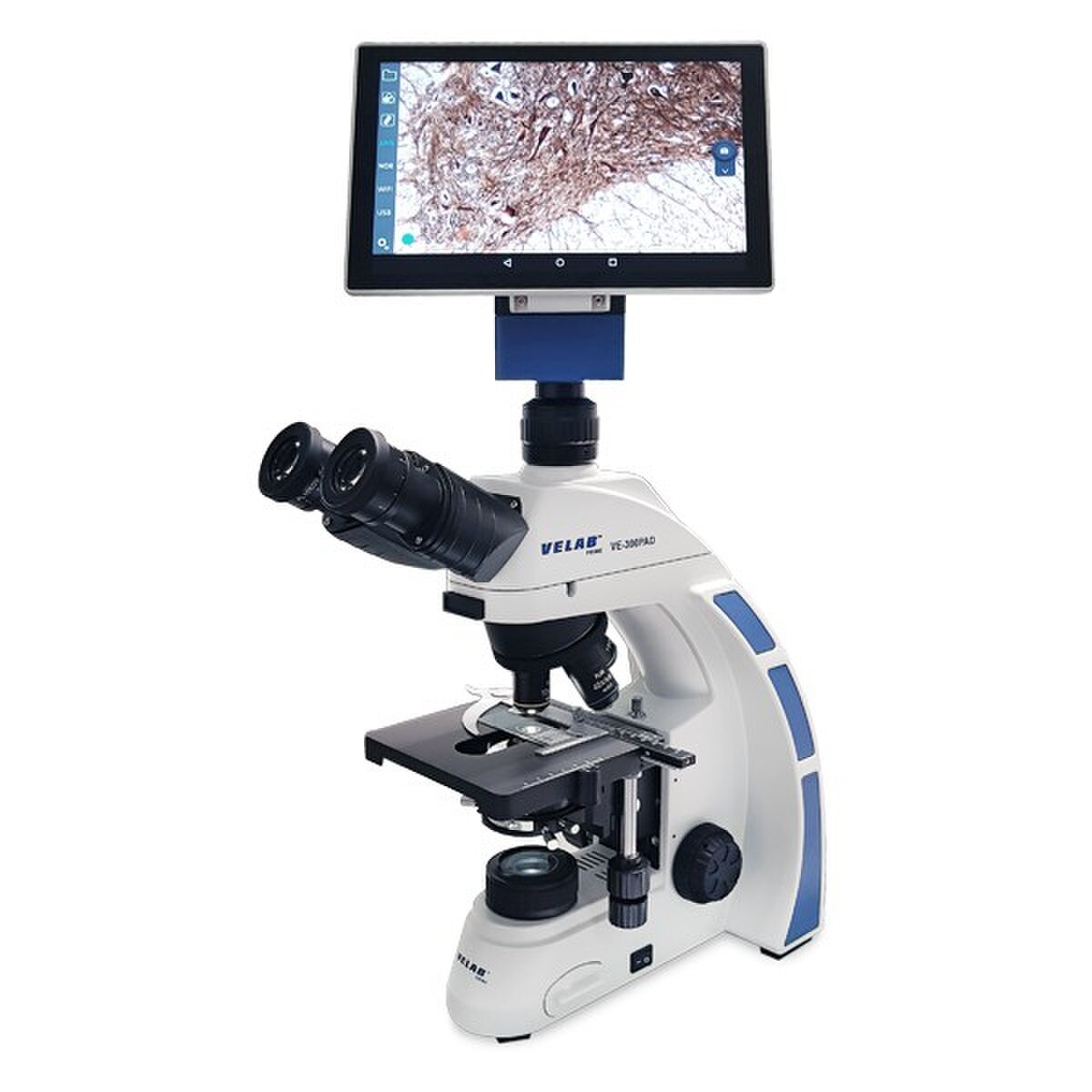

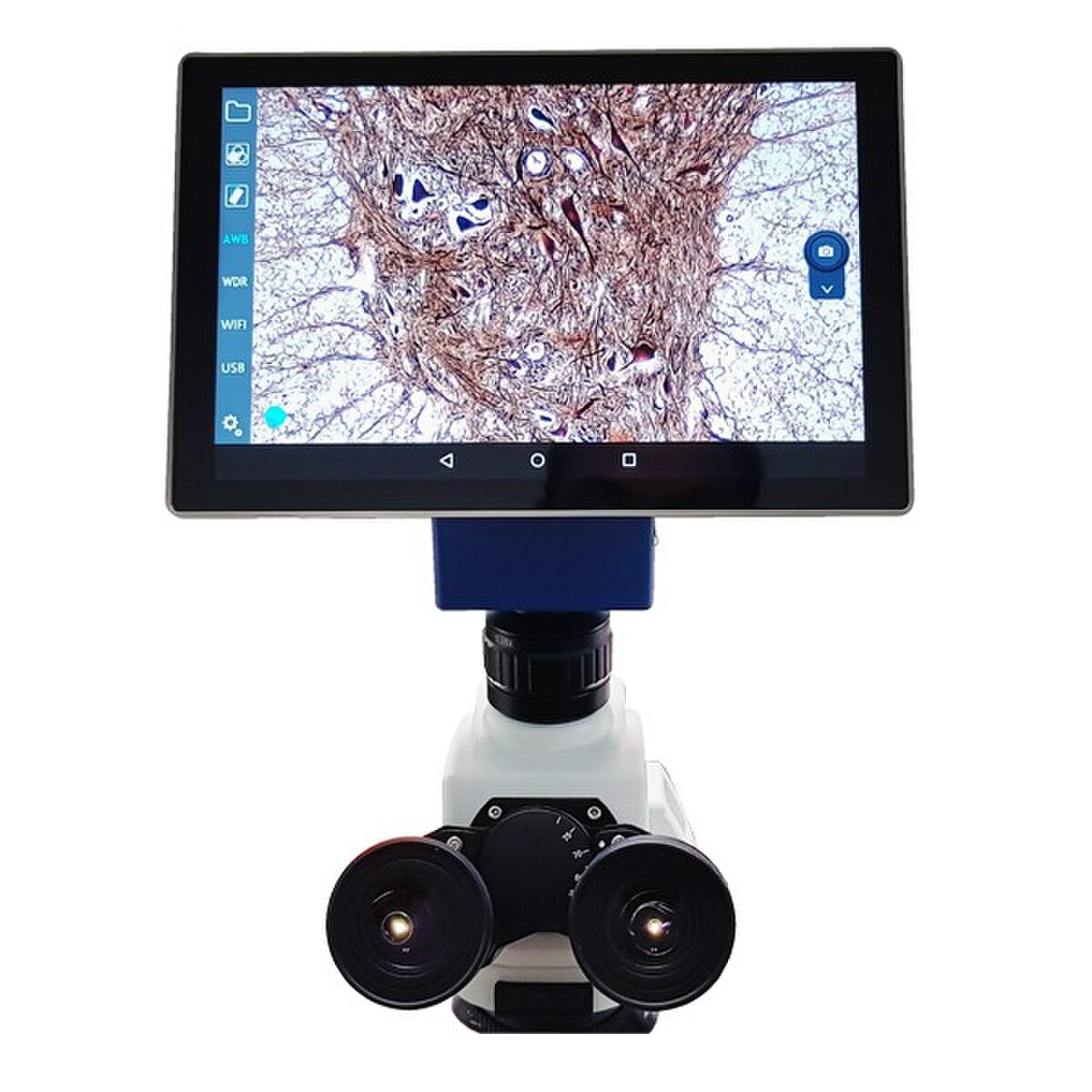

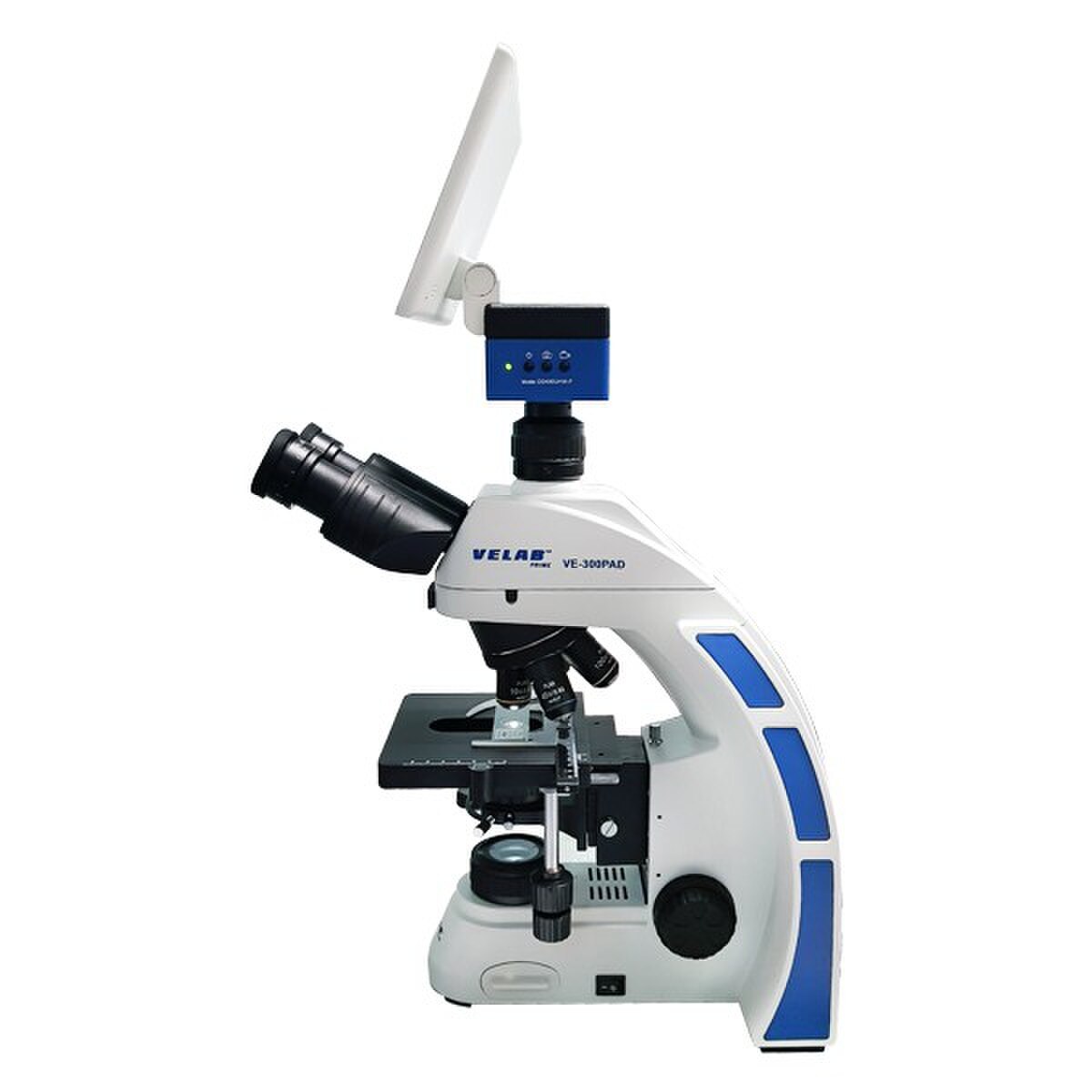

Digital Microscope With IntegranteTable (each)
Biological microscope designed for professional use. Used to identifying and analyzing substances and biological cultures in microbiology, biology, medicine and pathology. Ideal for research, higher education and routine clinical laboratory work. Equipped with the VESCOPEPAD 300 tablet, Android tablet. Includes 10.1 touch screen and the VELAB camera application for editing images.
SPECIFICATIONS MICROSCOPE
EYEPIECES: PL 10X/20 mm with rubber eyecups and ± 5 mm diopter adjustment in both eyepieces.
HEAD: Trinocular Siedentopf type, 30° inclined with interpupillary distance adjustment between 50 – 75 mm / 1.96"- 2.95".
NOSEPIECE: Quadruple nosepiece with anti-slip ring and click-stops, mounted on high-tension ball bearings.
OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Double plate with X-Y coaxial movement, / 5.51" x 5.19", vernier, millimeter scale (3.46" x 2.36"), clamp and height adjustment with stop.
CONDENSER: Abbe, N.A. 1.25, with height adjustment . Equipped with an adapter for optional configurations (not included).
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: Kohler 3W LED with intensity control and field diaphragm in the lamp.
POWER SUPPLY: 110-240V, 50/60 Hz, AC Adapter.
SPECIFICATIONS TABLET
SCREEN: 10.1" touch screen, 1280 x 800p resolution.
STORAGE: 12 GB internal and 16 GB of maximum external support for SD memory card.
INTERFACE: USB, mini USB and HDMI.
OPERATING SYSTEM: Android 5.1.1.
CONNECTIVITY: Wi.Fi and bluetooth.
APPLICATION: VELAB camera microscopy software for image editing.
SPECIFICATIONS CAMERA
TOTAL PIXELS: 4.0MP
IMAGE SENSOR: 1/3" CMOS.
RESOLUTION: 2688 x 1520p and 1920 x 1080p.
WHITE BALANCE: Automatic and Manual
RECORDING SYSTEM: Image and Video.
ACCESSORIES INCLUDED
Power cord.
Dust cover.
Immersion oil.
USB Cable.
HDM Cable.
Software CD.
WARRANTY
10-years limited warranty
Biological microscope designed for professional use. Used to identifying and analyzing substances and biological cultures in microbiology, biology, medicine and pathology. Ideal for research, higher education and routine clinical laboratory work. Equipped with the VESCOPEPAD 300 tablet, Android tablet. Includes 10.1 touch screen and the VELAB camera application for editing images.
SPECIFICATIONS MICROSCOPE
EYEPIECES: PL 10X/20 mm with rubber eyecups and ± 5 mm diopter adjustment in both eyepieces.
HEAD: Trinocular Siedentopf type, 30° inclined with interpupillary distance adjustment between 50 – 75 mm / 1.96"- 2.95".
NOSEPIECE: Quadruple nosepiece with anti-slip ring and click-stops, mounted on high-tension ball bearings.
OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Double plate with X-Y coaxial movement, / 5.51" x 5.19", vernier, millimeter scale (3.46" x 2.36"), clamp and height adjustment with stop.
CONDENSER: Abbe, N.A. 1.25, with height adjustment . Equipped with an adapter for optional configurations (not included).
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: Kohler 3W LED with intensity control and field diaphragm in the lamp.
POWER SUPPLY: 110-240V, 50/60 Hz, AC Adapter.
SPECIFICATIONS TABLET
SCREEN: 10.1" touch screen, 1280 x 800p resolution.
STORAGE: 12 GB internal and 16 GB of maximum external support for SD memory card.
INTERFACE: USB, mini USB and HDMI.
OPERATING SYSTEM: Android 5.1.1.
CONNECTIVITY: Wi.Fi and bluetooth.
APPLICATION: VELAB camera microscopy software for image editing.
SPECIFICATIONS CAMERA
TOTAL PIXELS: 4.0MP
IMAGE SENSOR: 1/3" CMOS.
RESOLUTION: 2688 x 1520p and 1920 x 1080p.
WHITE BALANCE: Automatic and Manual
RECORDING SYSTEM: Image and Video.
ACCESSORIES INCLUDED
Power cord.
Dust cover.
Immersion oil.
USB Cable.
HDM Cable.
Software CD.
WARRANTY
10-years limited warranty
| Product Type: | Microscope |
| Brand: | VELAB |
| Head: | Binocular |
| Overall Dimensions: | 22 x 11 x 22 in |
