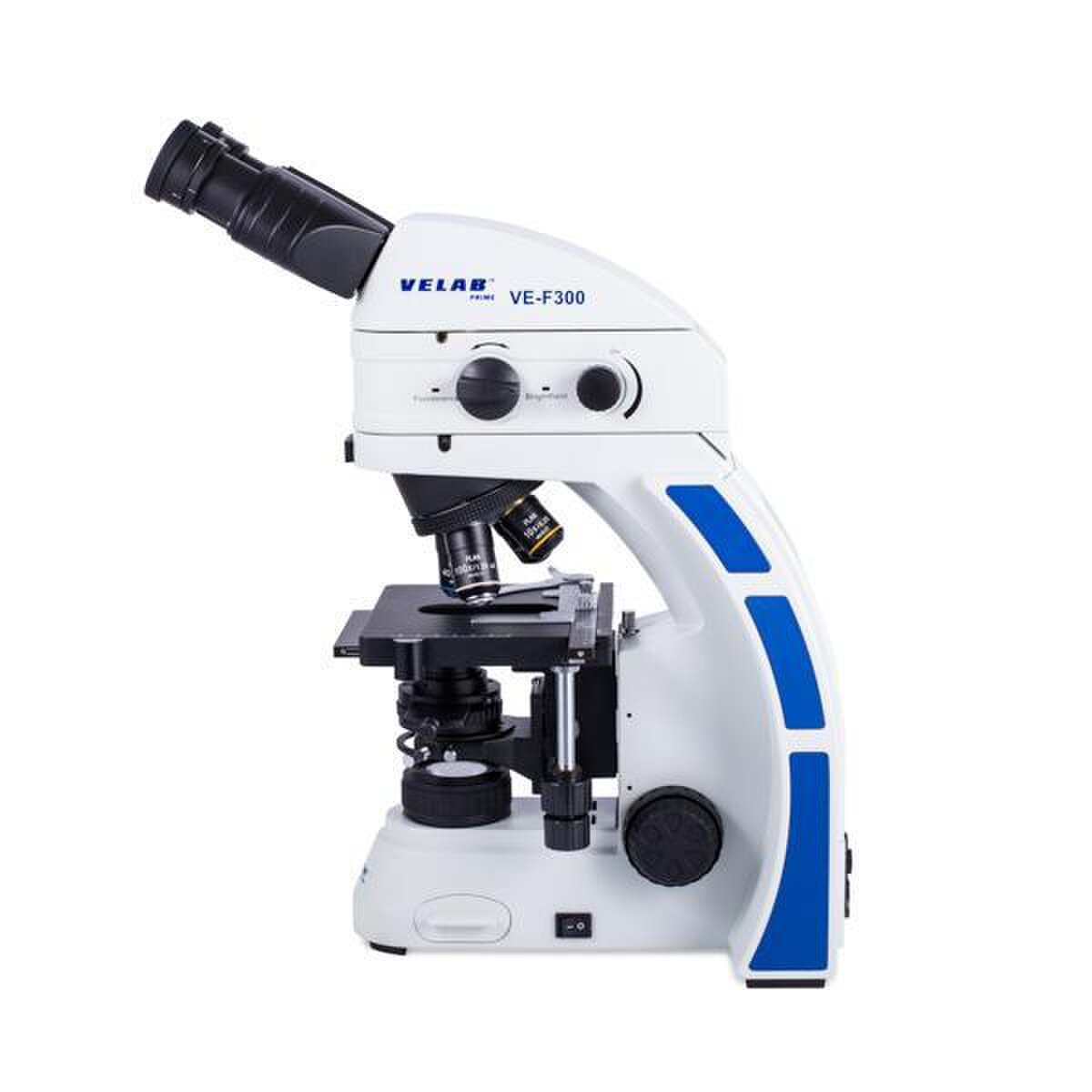

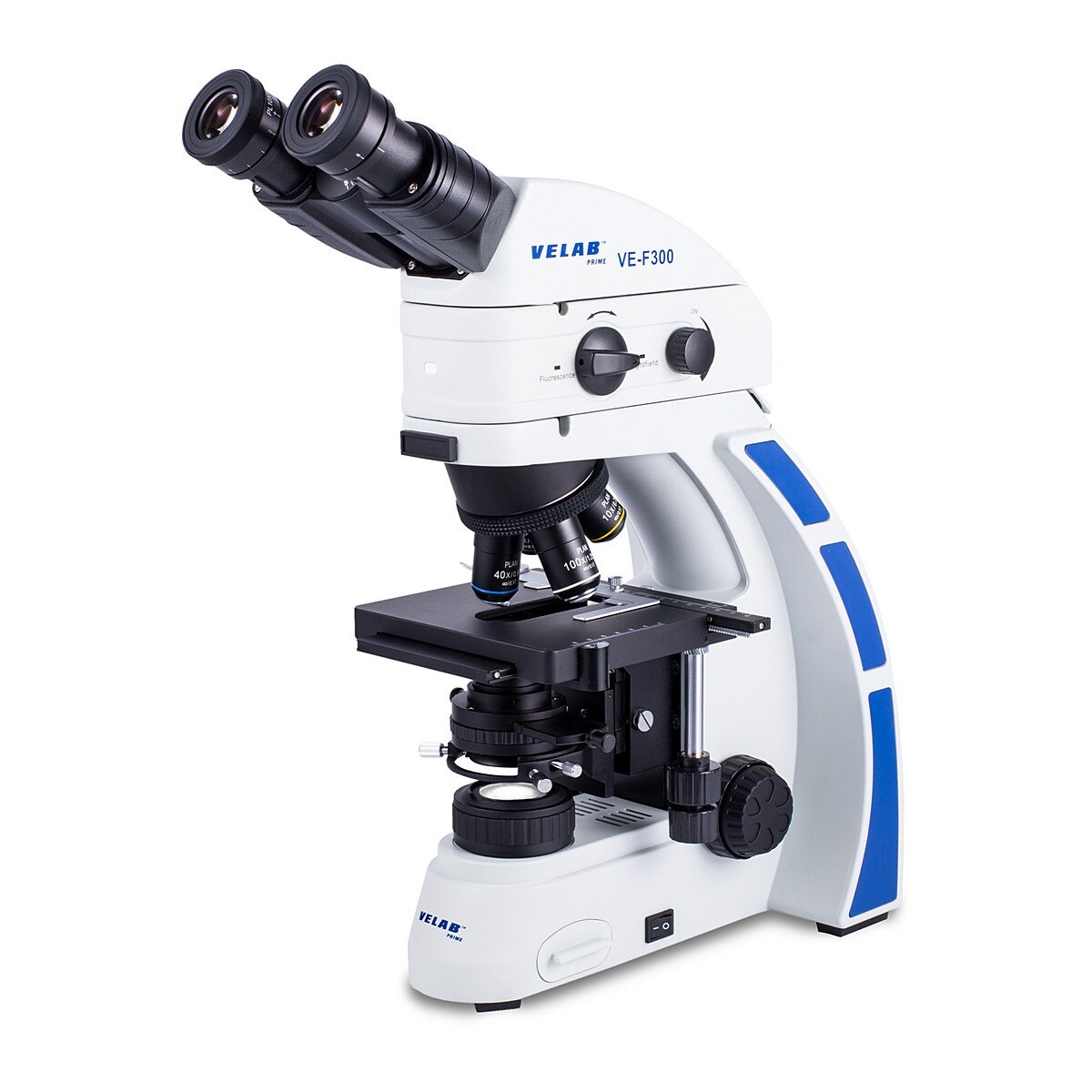

Fluorescence Binocular Microscope (each)
The VE-F300 LED fluorescence microscope was designed for professional use, thanks to its excellent quality optical components and highly efficient LED illumination. It includes Epi-LED fluorescence illumination for immediate use, is extremely safe, and has no need for a fluorescent light protective screen. Ideal in biochemistry, neurology, biology, and research, as well as for the diagnosis of diseases.
SPECIFICATIONS
EYEPIECES: PL 10X/20 mm 360° rotary, with rubber eyecups and ± 5 mm diopter adjustment in both eyepieces.
HEAD: Binocular Gemel type, 30° inclined with interpupillary distance adjustment between 50 – 75 mm/1.96"- 2.95" and integrated 5.0MP digital camera.
NOSEPIECE: Quadruple nosepiece with anti-slip grip and click-stops, mounted on high-tension ball bearings.
OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil), infinity corrected plan achromatic optics and color ring for easy identification.
STAND: Stative, robust, and reinforced with epoxy paint finish.
STAGE: Double layer with coaxial movement X-Y, 150 x 140 mm / 5.9” x 5.5”.

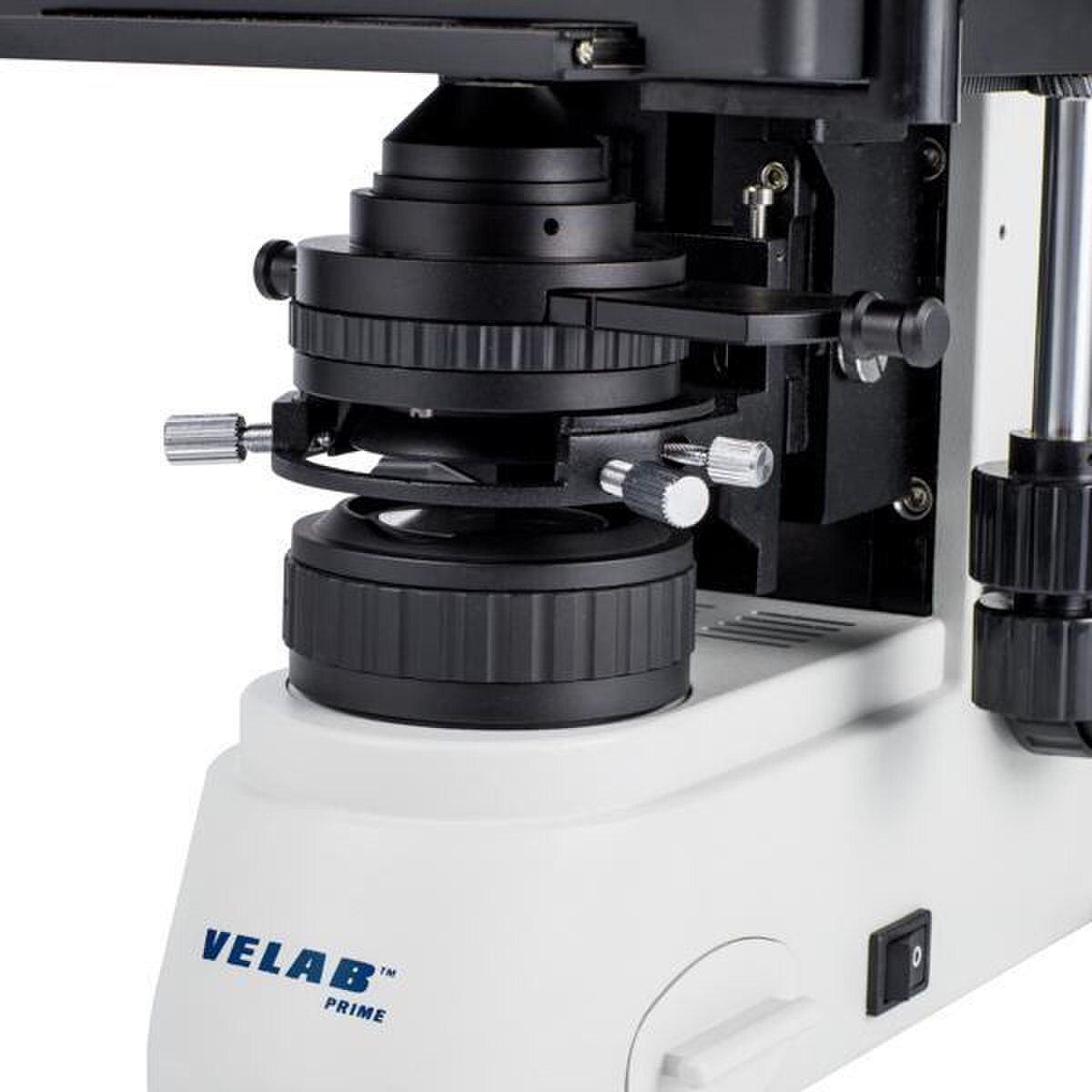

CONDENSER: Abbe, N.A. 1.25 with height adjustment screw. Equipped with an adapter for optional configurations (not included).
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with 0.001 mm precision, 200 graduations per micrometer turn (0.2 mm) and tension adjustment.
ILLUMINATION: 3W Kohler LED with intensity control and field diaphragm in the lamp.
POWER SUPPLY: 110-240V, 50/60 Hz, AC Adapter.
DIMENSIONS: 8.07" x 18.42" x 14.96"
ACCESSORIES INCLUDED
Dust cover.
Immersion oil.
Power cord.
Software CD.
USB cable.
ACCESSORIES NOT INCLUDED
Darkfield set.
LED fluorescence illuminator.
Phase contrast kit.
Simple polarization set.
WARRANTY
10-years limited warranty
The VE-F300 LED fluorescence microscope was designed for professional use, thanks to its excellent quality optical components and highly efficient LED illumination. It includes Epi-LED fluorescence illumination for immediate use, is extremely safe, and has no need for a fluorescent light protective screen. Ideal in biochemistry, neurology, biology, and research, as well as for the diagnosis of diseases.
SPECIFICATIONS
EYEPIECES: PL 10X/20 mm 360° rotary, with rubber eyecups and ± 5 mm diopter adjustment in both eyepieces.
HEAD: Binocular Gemel type, 30° inclined with interpupillary distance adjustment between 50 – 75 mm/1.96"- 2.95" and integrated 5.0MP digital camera.
NOSEPIECE: Quadruple nosepiece with anti-slip grip and click-stops, mounted on high-tension ball bearings.
OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil), infinity corrected plan achromatic optics and color ring for easy identification.
STAND: Stative, robust, and reinforced with epoxy paint finish.
STAGE: Double layer with coaxial movement X-Y, 150 x 140 mm / 5.9” x 5.5”.
CONDENSER: Abbe, N.A. 1.25 with height adjustment screw. Equipped with an adapter for optional configurations (not included).
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with 0.001 mm precision, 200 graduations per micrometer turn (0.2 mm) and tension adjustment.
ILLUMINATION: 3W Kohler LED with intensity control and field diaphragm in the lamp.
POWER SUPPLY: 110-240V, 50/60 Hz, AC Adapter.
DIMENSIONS: 8.07" x 18.42" x 14.96"
ACCESSORIES INCLUDED
Dust cover.
Immersion oil.
Power cord.
Software CD.
USB cable.
ACCESSORIES NOT INCLUDED
Darkfield set.
LED fluorescence illuminator.
Phase contrast kit.
Simple polarization set.
WARRANTY
10-years limited warranty
| Product Type: | Microscope |
| Brand: | VELAB |
| Head: | Binocular |
| Overall Dimensions: | 22 x 11 x 22 in |
