VLB-VE-S3
Images are for representation only. Actual product may differ in size, color or options.

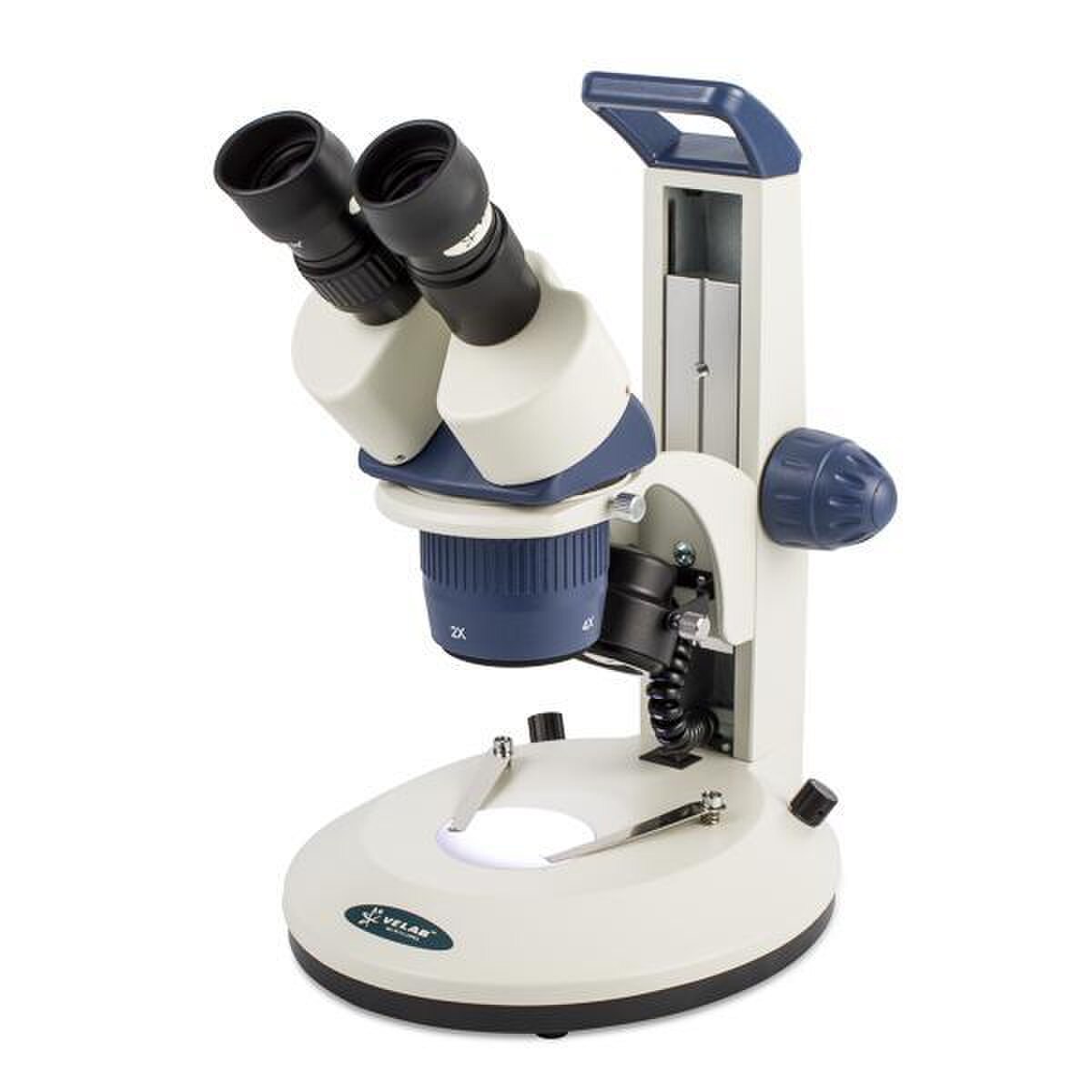

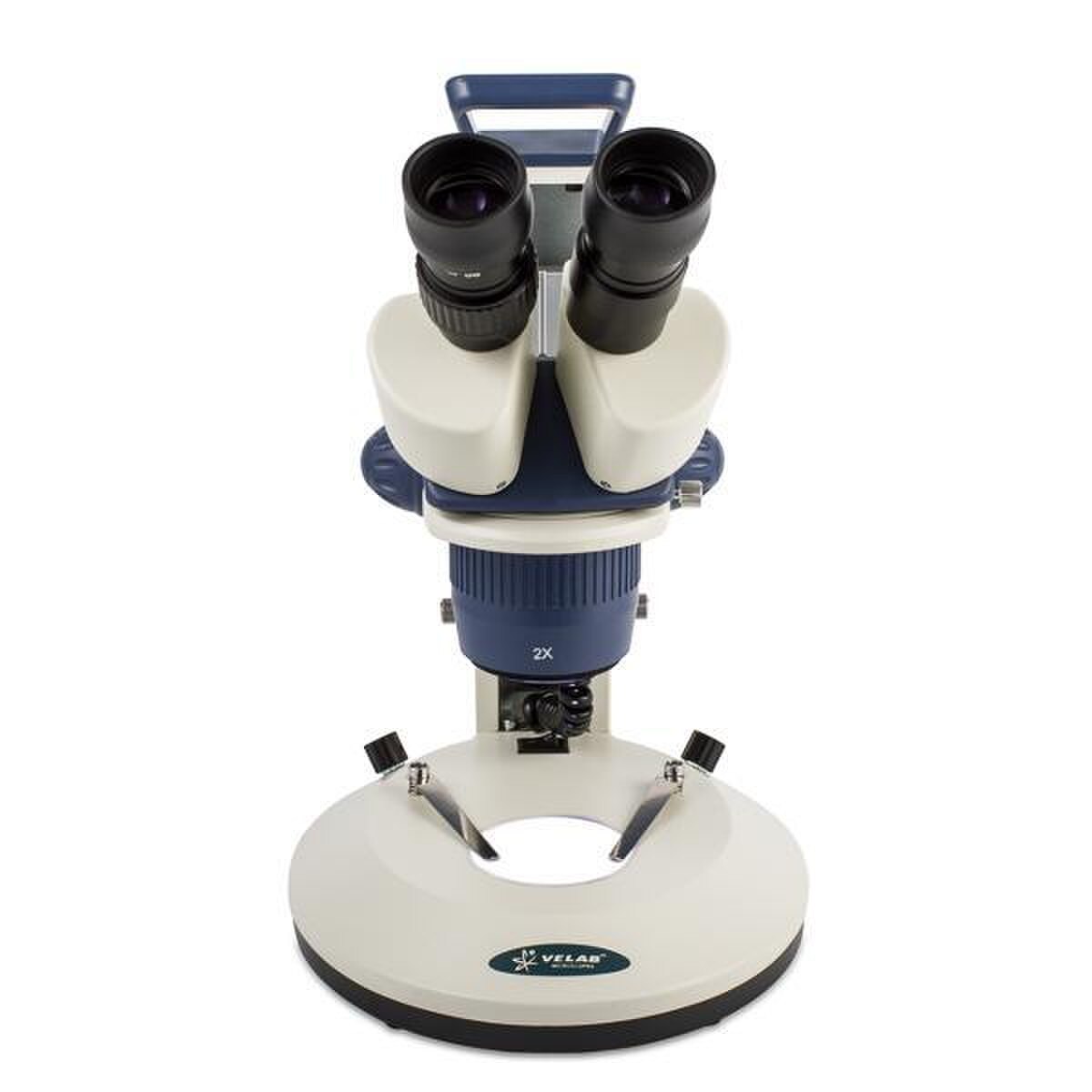

Binocular Stereoscopic Microscope (each)
Ideal for secondary education, the VE-S3 is also capable of covering basic procedures in higher education.
Its Greenough design allows three- dimensional observation of insects. The VE-S3 is ideal for numismatics, the electronic industry, jewelry design and classification of entomology and taxonomy organisms.
SPECIFICATIONS
EYEPIECES: WF 10x/20 mm with rubber eyecups and diopter adjustment on one eyepiece.
HEAD: Binocular 45° inclined, with interpupillary distance adjustment between 55 - 75mm / 2.16" - 2.95".

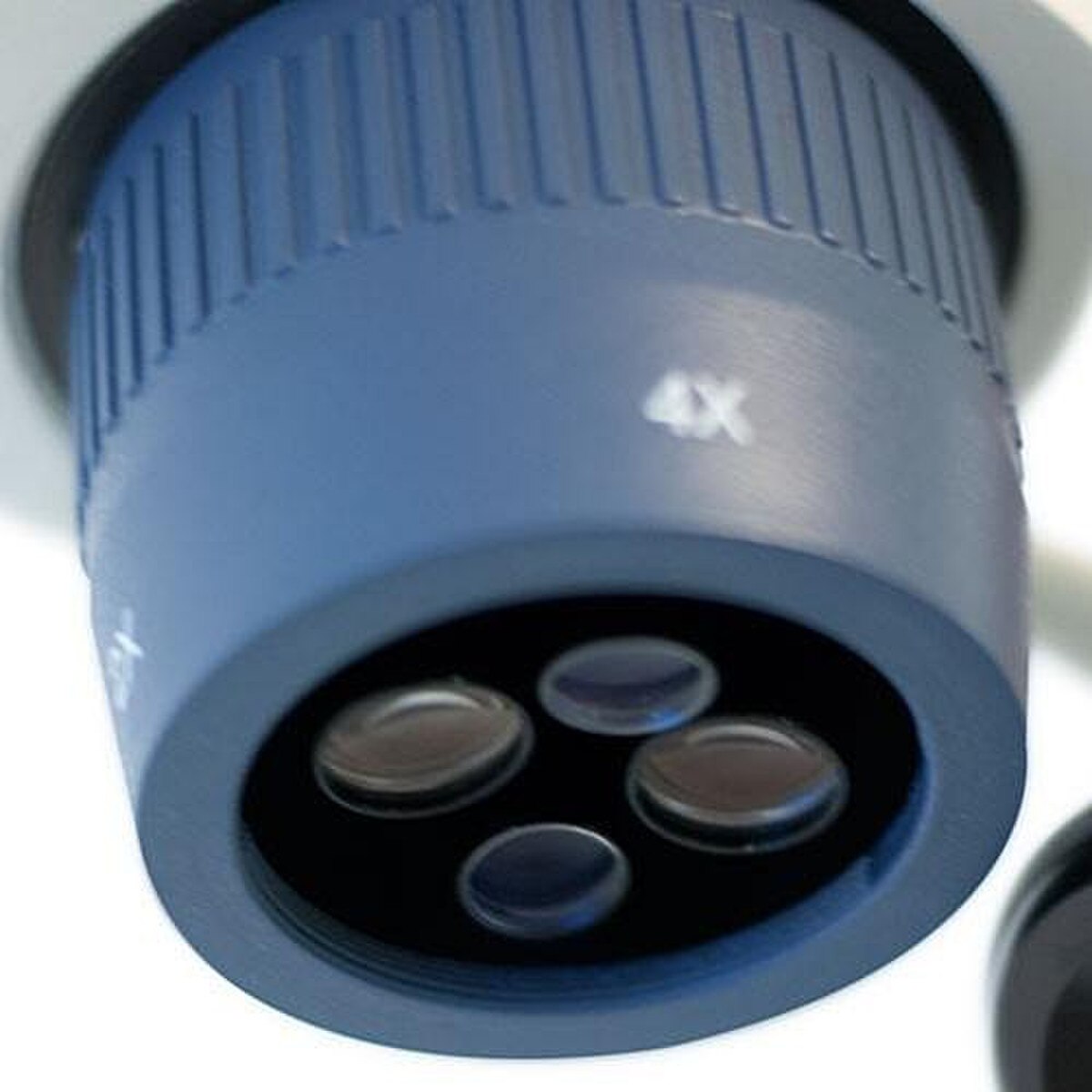

OBJECTIVE: Selectable 2X/4X (20 and 40 total increases), with objective cover.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Interchangeable between translucent white and double side white / black, with a pair of stage clips.
FOCUSING: Coarse anti-slip control knob.

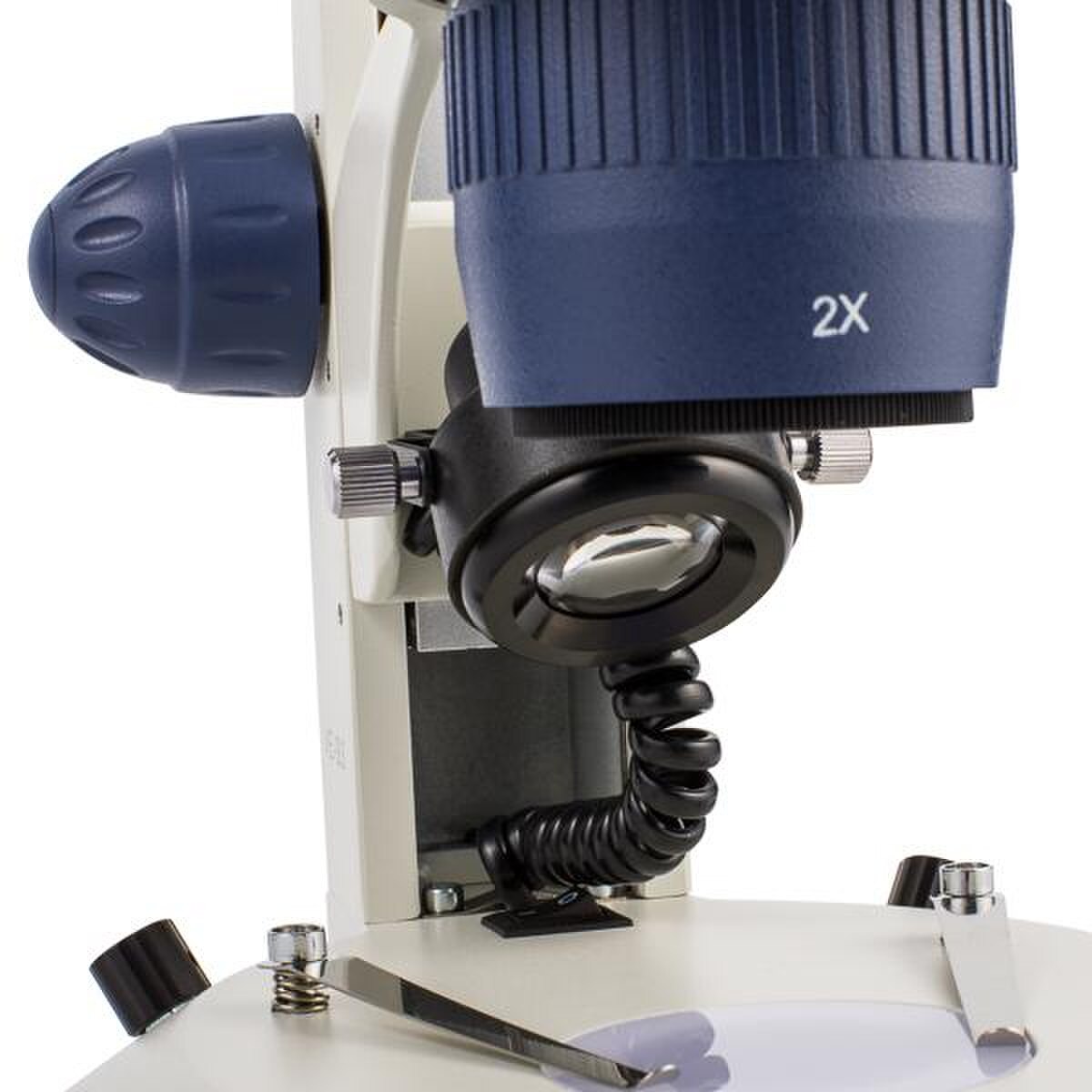

ILLUMINATION: Transmitted and incident LED light with independent variable intensity control.
POWER SUPPLY: 110-240V, 50/60 Hz AC adapter.
DDIMENSIONS: 7.87" x 14.05" x 10.23"
ACCESSORIES INCLUDED
Dust cover.
Operation manual.
Power cord.
WARRANTY
10-years limited warranty.
Ideal for secondary education, the VE-S3 is also capable of covering basic procedures in higher education.
Its Greenough design allows three- dimensional observation of insects. The VE-S3 is ideal for numismatics, the electronic industry, jewelry design and classification of entomology and taxonomy organisms.
SPECIFICATIONS
EYEPIECES: WF 10x/20 mm with rubber eyecups and diopter adjustment on one eyepiece.
HEAD: Binocular 45° inclined, with interpupillary distance adjustment between 55 - 75mm / 2.16" - 2.95".
OBJECTIVE: Selectable 2X/4X (20 and 40 total increases), with objective cover.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Interchangeable between translucent white and double side white / black, with a pair of stage clips.
FOCUSING: Coarse anti-slip control knob.
ILLUMINATION: Transmitted and incident LED light with independent variable intensity control.
POWER SUPPLY: 110-240V, 50/60 Hz AC adapter.
DDIMENSIONS: 7.87" x 14.05" x 10.23"
ACCESSORIES INCLUDED
Dust cover.
Operation manual.
Power cord.
WARRANTY
10-years limited warranty.
| Product Type: | Microscope |
| Brand: | VELAB |
| Product Line: | VELAB |
| Class: | Educational |
| Grade: | Basic |
| Power Supply: | 120 VAC, 50/60Hz |
| Body: | Stative Epoxy Paint Finish |
| Dioptric Adjustment: | One Eyepiece |
| Eyepieces: | 20 mm |
| Eyepiece Type: | Widefield |
| Eyepiece Magnification: | 10x |
| Focusing: | Coarse anti-slip control knobs |
| Head: | Binocular |
| Illumination: | Transmitted and incident LED light with independent variable intensity control |
| Interpupillary Adjustment: | 55 – 75 mm / 2.16 inch – 2.95 inch |
| Objective Magnification: | 2X, 4X (20 and 40 total increases) |
| Objective Type: | Selectable with objective cover |
| Stage: | Interchangeable between translucent glass and double side white/black stage, with a pair of stage clips |
| Viewing Head: | 45° Inclination |
| Warranty: | 10 years limited |
| Overall Dimensions: | 9 x 18 x 12 in |
| Includes: | AC/DC Adapter, Dust cover, Operation manual |
